STAINLESS STEEL REACTOR
设计标准：GB150-2011《压力容器》 | ASME Section VIII Div.1
设计标准：GB150-2011《压力容器》 | ASME Section VIII Div.1
Design Standards: ASME Section VIII Div.1 | PED 2014/68/EU
Component | Material Options | Properties |
Main Vessel | 304/316L/321 Stainless Steel | Tensile strength ≥515 MPa, Ra≤0.8μm (electropolished) |
Heat Exchange | Jacket/Half-pipe Coil/Internal Coil | Jacket pressure 0.6MPa, Half-pipe pressure 2.5MPa |
Sealing | Mechanical Seal (double) + PTFE Gasket | EN 12756 leakage standard (≤10 ppm) |
Heating Methods
Electric: 380V/50Hz, power density ≤3.5W/cm²
Steam: Saturated steam ≤0.8MPa
Thermal Oil: Temperature control ±1℃
Agitation System
Paddle/Turbine/Anchor type
Speed 0~300 rpm (VFD control)
Connections
Flanges: HG/T 20592 DN50~DN200
Quick Clamps: ISO 2852
Advantage | Technical Highlights |
High Strength | Operating pressure up to 4.0MPa (hydrotest 6.0MPa) |
Sanitary Grade | Complies with GMP 2023 Class D cleanliness |
Rapid Heating | Jacket heating rate ≥3℃/min (2000L volume) |
Cost Efficiency | 20-year service life, maintenance cost 40% lower than glass-lined reactors |
Parameter | Standard Range | Custom Options |
Volume | 100L~20,000L | Up to 50,000L |
Temperature | -196℃~+350℃ | +450℃ (special design) |
Vacuum | ≤0.095MPa | ≤1×10⁻³ Pa (high vacuum) |

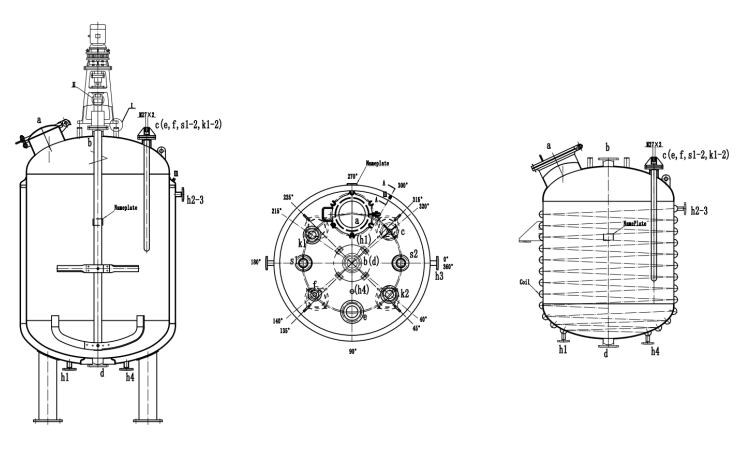

Nozzle 管口 | Connection standard 连接尺寸 | Application用途 |
a | / | Manhole 人孔 |
b | HG/T20592-2009 | Agitator hole 搅拌孔 |
c | HG/T20592-2009 | Temperature hole 温度计口 |
d | HG/T20592-2009 | Discharge hole 排净口 |
e | HG/T20592-2009 | Reserve hole 备用口 |
f | HG/T20592-2009 | Pressure gauge 压力表口 |
S1-2 | / | Sight glass hole 视镜口 |
H1-4 | HG/T20592-2009 | Jacket inlet and outlet hole 夹套进出口 |
K1-2 | HG/T20592-2009 | Reserve hole 备用口 |
m | Inner screw, G1/2” | Jacket vent hole 气体出口 |
